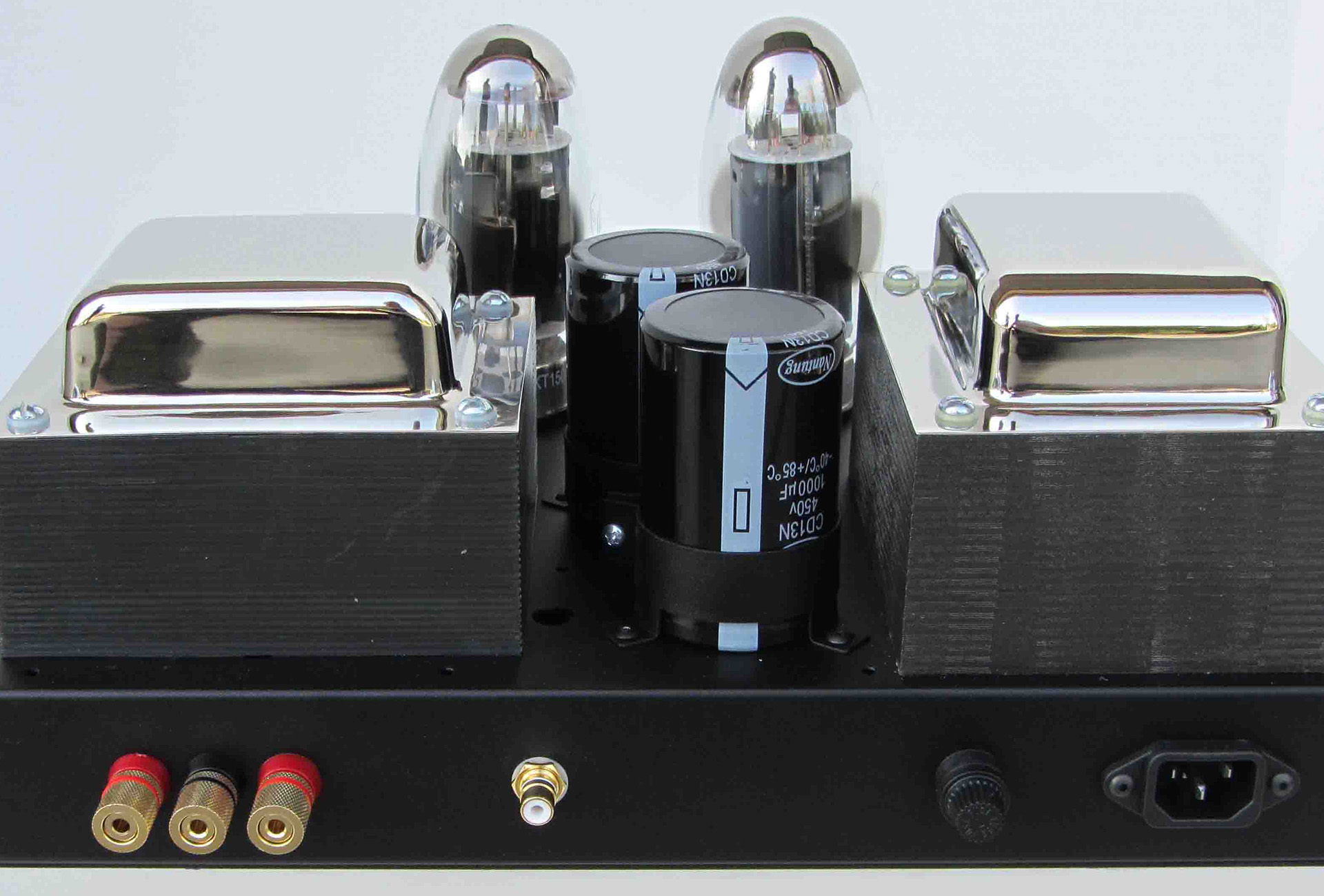

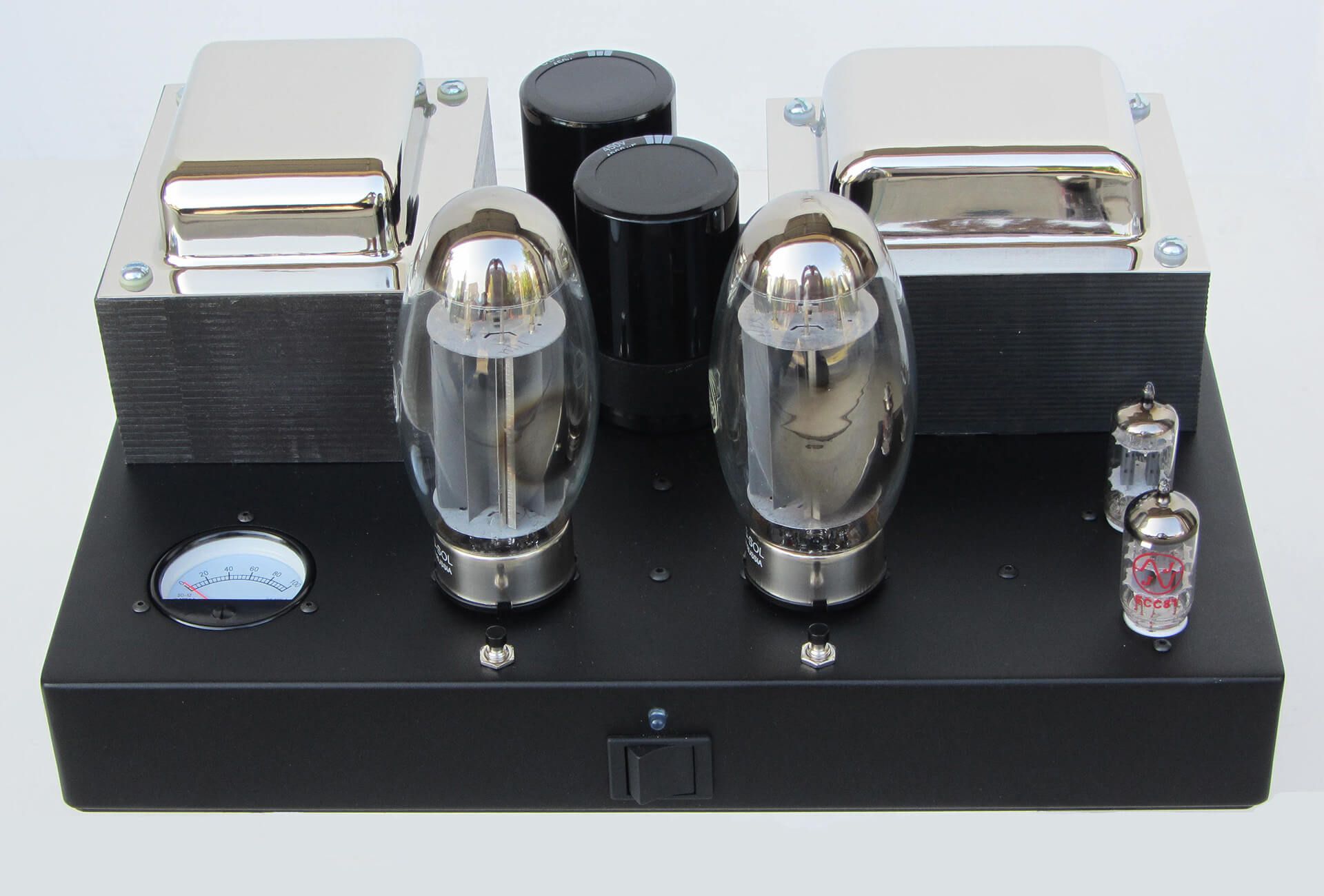

Mono 120 Amplifier

The new Mono 120 brings the finesse and transparency of low powered tube amplifiers into the realm of less efficient speakers. Employing only two output tubes, this circuit provides 120 watts without stressing or pushing these tubes to their limit, and with the lowest output impedance and distortion of all the Quicksilver amplifiers, the Mono 120 brings a new level of performance to this power range.

An on-board bias meter allows individual adjustment of each output tube and, with low-noise power supplies and circuitry, the Mono 120 can still be used on very efficient speakers. The 180 Joules of energy storage provide effortless dynamic response, transmitting the full musical impact of sudden shifts from soft to loud. The Mono 120 has a black chassis and chrome-plated transformer covers.

Price $3995/pair with KT88s
$4395/pair with KT150s
Price for 230 volt/50 Hz add $190 /pair.

Specifications

Download Instruction Manual

Power Output 120 watts into 4 or 8 ohms from 20Hz to 20 KHz
Power Bandwidth 13 Hz to 80 KHz
Input Sensitivity 1 volt
Input impedance 100 K ohms
Damping Factor 15
IM Distortion 1% or less at 120 watts
Power Consumption 115 watts at idle
290 watts at full power
Tube Complement 1 12AU7 input
1 12AT7 driver
2 KT88 or KT150 outputs
Finish Carbide black chassis with
Chrome transformer covers
Dimensions 6 1/2″H, 9 3/4″D, 15″W
Weight 38 lbs., 42 lbs. shipping weight
U.S. Warranty 3 years parts and labor
Tubes 90 days
